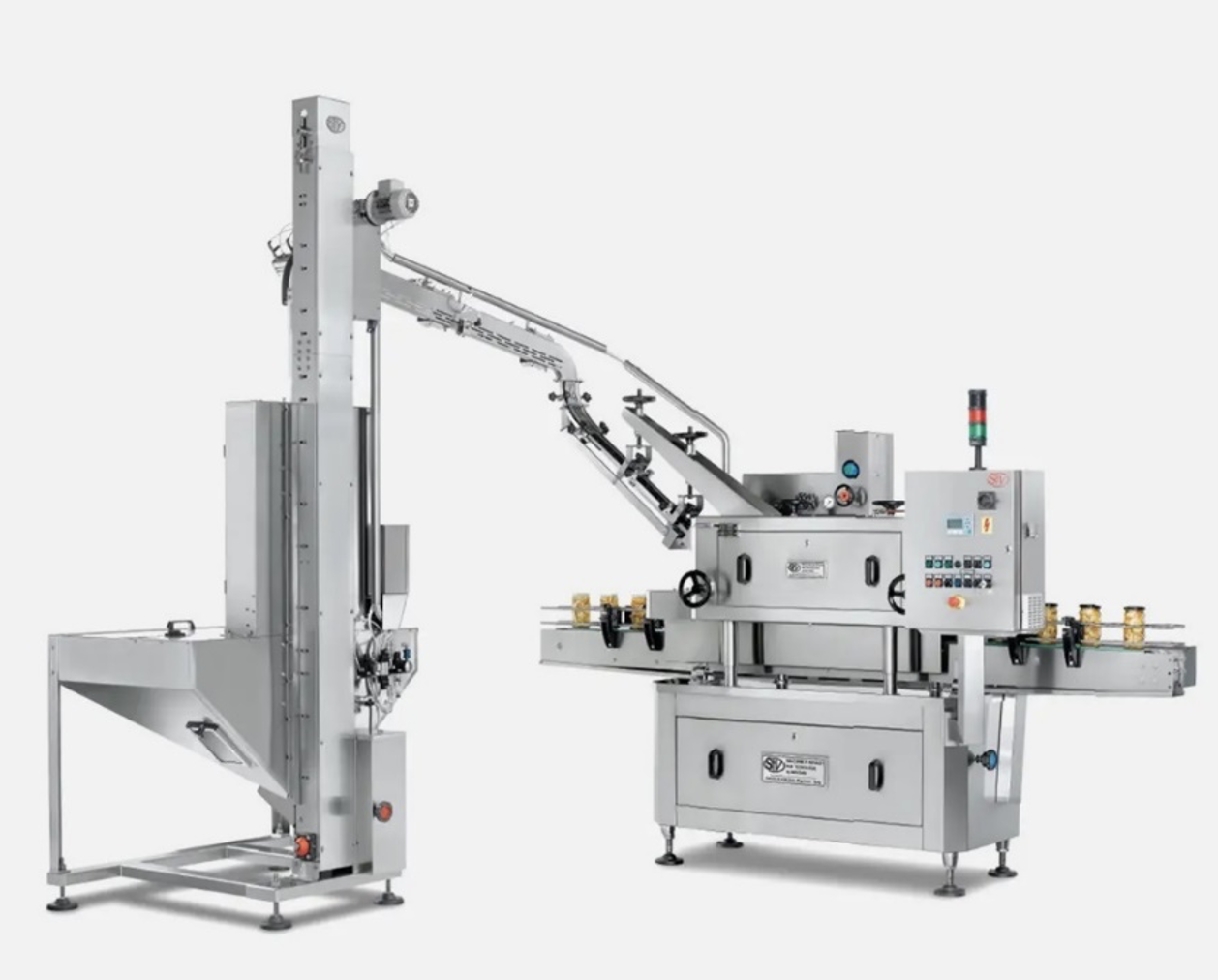

Refurbished Automatic Linear Capper with New Magnetic Feeder

An upgraded version of our C150 capper, fitted with a new magnetic feeder for higher-speed automatic cap feeding. This second hand and refurbished linear capper closes glass jars and bottles of round, square, hexagonal, and octagonal shapes with twist-off caps, now reaching up to 15,000 jars/hour with a 53mm capsule.

Description

Overview

This second hand and refurbished STV C150 MF is the higher-throughput version of Icon’s C150 capper range, upgraded with a new magnetic feeder for faster, more consistent automatic cap feeding. It closes glass jars and bottles of round, square, hexagonal, and octagonal shapes with twist-off caps, and is well suited to manufacturers who have outgrown a standard-speed capper and need to scale production without moving to a full custom line.

Key Features

  • New magnetic feeder increases handling speed and reduces manual cap-loading intervention
  • Nearly double the output of the standard C150 (up to 15,000 jars/hour vs 8,000 jph)
  • Same capsule and container flexibility as the standard C150, so existing tooling and formats carry across
  • Suited to growing dairy, sauce, and preserves operations moving to higher-volume runs

Ideal Applications

Manufacturers scaling from pilot or small-batch capping to higher-volume production runs, particularly where consistent cap feeding at speed is a bottleneck on an existing line.

Why Buy Refurbished from Icon Equipment

Icon Equipment International, based in Melbourne and operating since 1985, refurbishes and supports capping and filling machinery for food and beverage manufacturers across Australia. This C150 MF unit has been reconditioned and comes with a 12-month warranty, offering a faster path to higher output than sourcing new equipment.

Note

Machine images are for illustrative purposes only and show refurbished equipment; actual configuration may vary.

Spec Value
Model STV C150 MF
Max output 15,000 jars/hour (Ø 53mm capsule)
Length 3,000 mm (approx. 3,700mm with magnetic feeder)
Width 1,000 mm (approx. 3,000mm with magnetic feeder)
Capsule dimension range Ø 43mm (4-fin) to Ø 110mm
Container dimensions Ø 40–140mm, height 50–250mm
Steam consumption approx. 70 kg/h
Installed power approx. 3.2 kW
