Peristaltic Pump with XYZ Machine for Automatic Filling and Dispensing
Enquire about this product

Price starts at $9,580.00

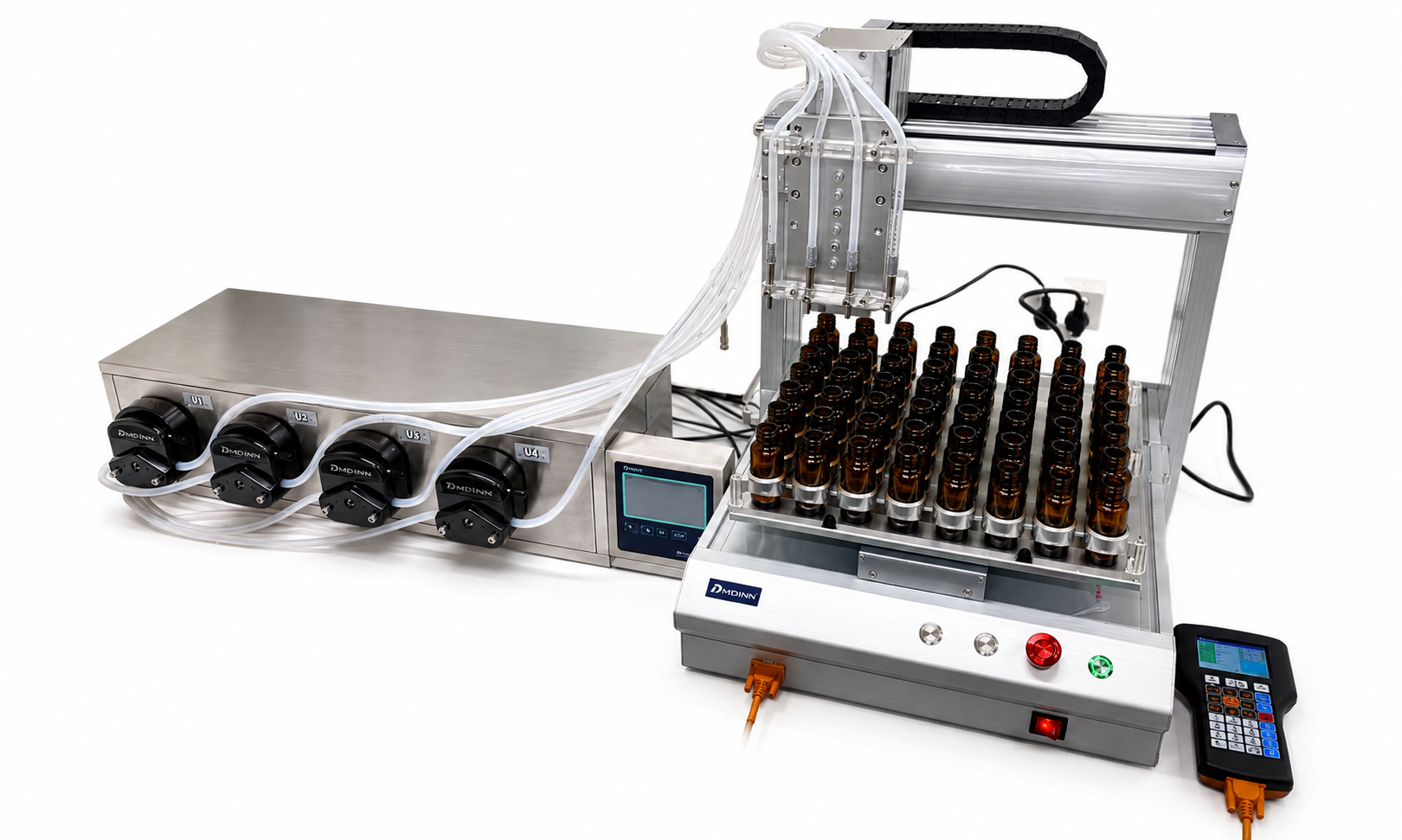

Peristaltic Pump with XYZ Machine for Automatic Filling and Dispensing

Description

IN STOCK NOW, Secondhand equipment.

This system is widely used in applications such as diagnostic reagent dispensing, cell culture, oil, and juice filling. The XYZ machine can be combined with a peristaltic pump and can also integrate with other peristaltic filling systems for same-volume, multichannel filling, with one controller capable of managing up to 32/16 pump units. Additionally, the XYZ machine can work with an OCM system for multichannel, different-volume, or step-filling, where one controller can control a maximum of 8 pump unit.

Trolley and handheld capper are available and sold separately.

Features

  • High precision: Accuracy ranges from 0.5% to 1%.

  • Dispensing volume range: From 20 µL to 100 mL.

  • Robot size options: 200x200 mm, 300x300 mm, 500x500 mm, and other custom sizes available.

  • Customizable pallet system: The XYZ machine comes with 2 pallets, which are customized according to the customer containers.

  • Pallet size options: 200x200 mm, 300x300 mm, 400x400 mm, and 500x500 mm.

  • Integrated filling system: Combines peristaltic pump with filling robot to enable simultaneous filling of one or multiple bottles, saving time and improving production efficiency.

  • Weight: 30 kg.

  • Humidity: Less than 80%.

  • Power supply: 220V/110V.

  • Accuracy: Approximately ±1%.

  • Working temperature: 0°C to 40°C.

  • Back suction: 0 to 360°C.
