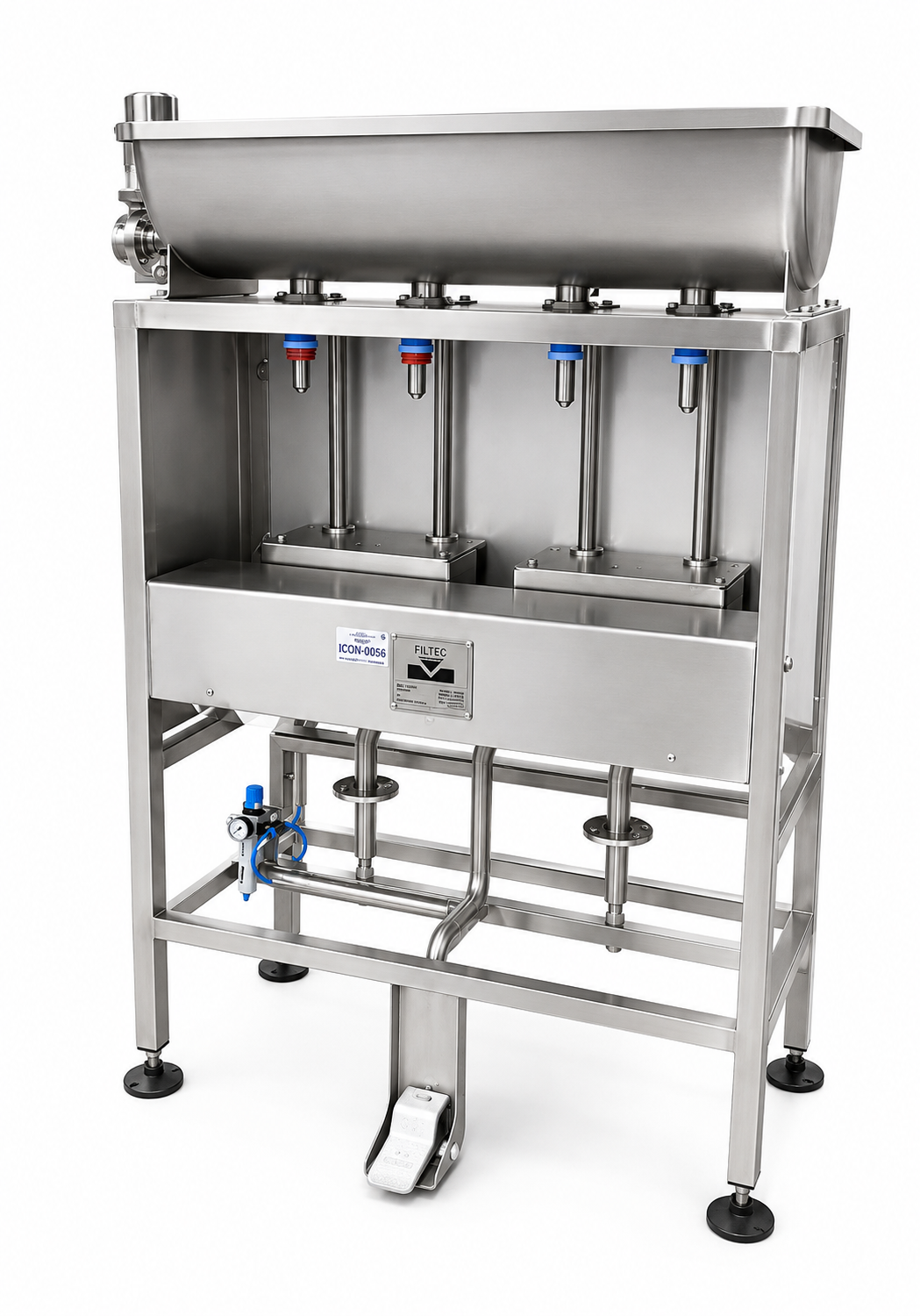

4 Head Semi Automatic Level Filler
Intro

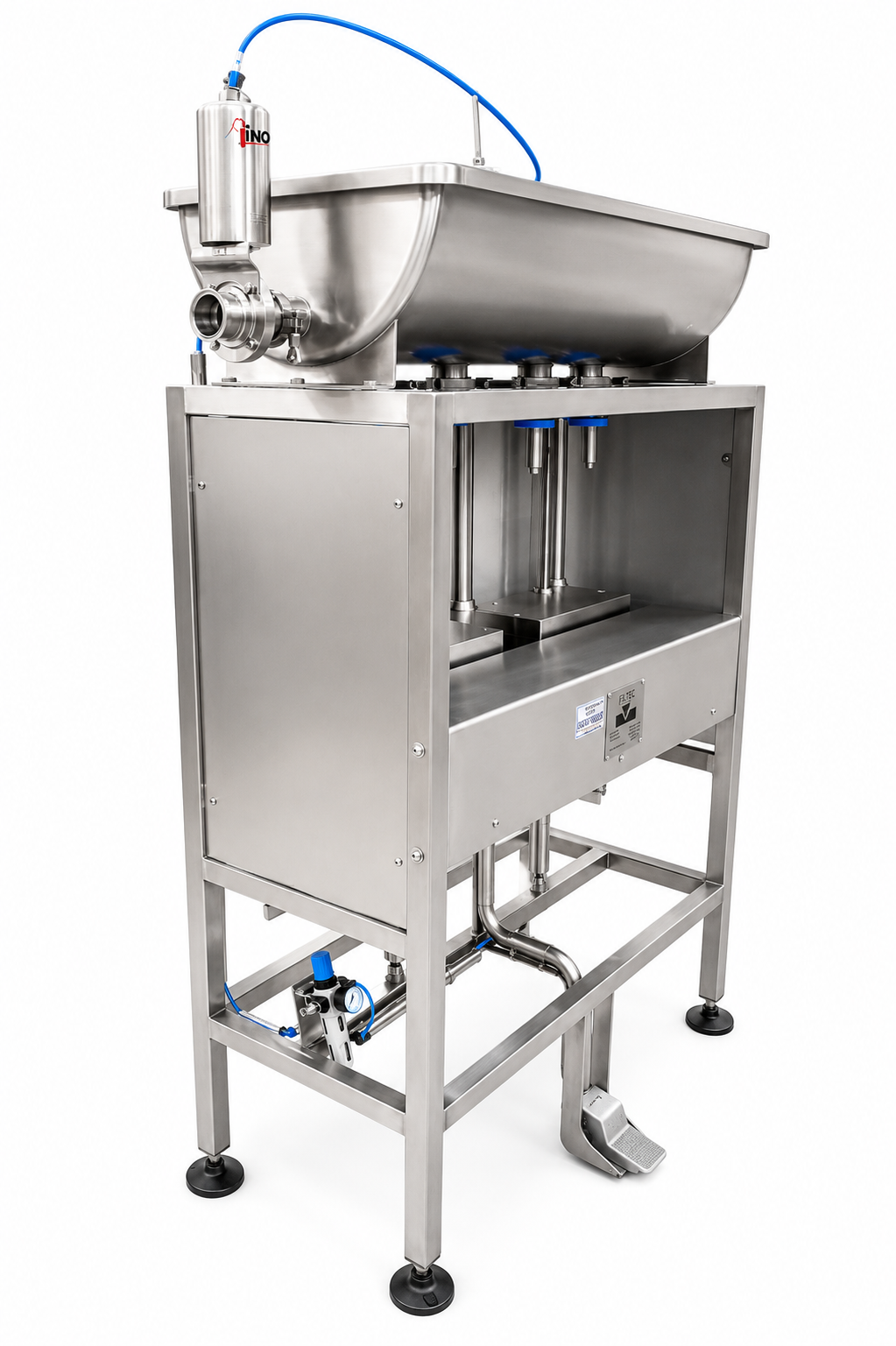

Icon Equipment International supplies this 4 head semi-automatic gravity level filler, built for free-flowing, low-viscosity products such as milk, water, juice, beverages, cordials, and vinegars. It’s fitted with an approximately 60-litre tank, with an optional internal level control available for the tank.
The filler is fully adjustable, handling bottle sizes from 250ml up to 5 litres, with spacer change parts supplied to adjust fill volumes. It’s designed for quick, easy cleaning between product change-overs, making it well suited to smaller producers running multiple product lines.
How It Works

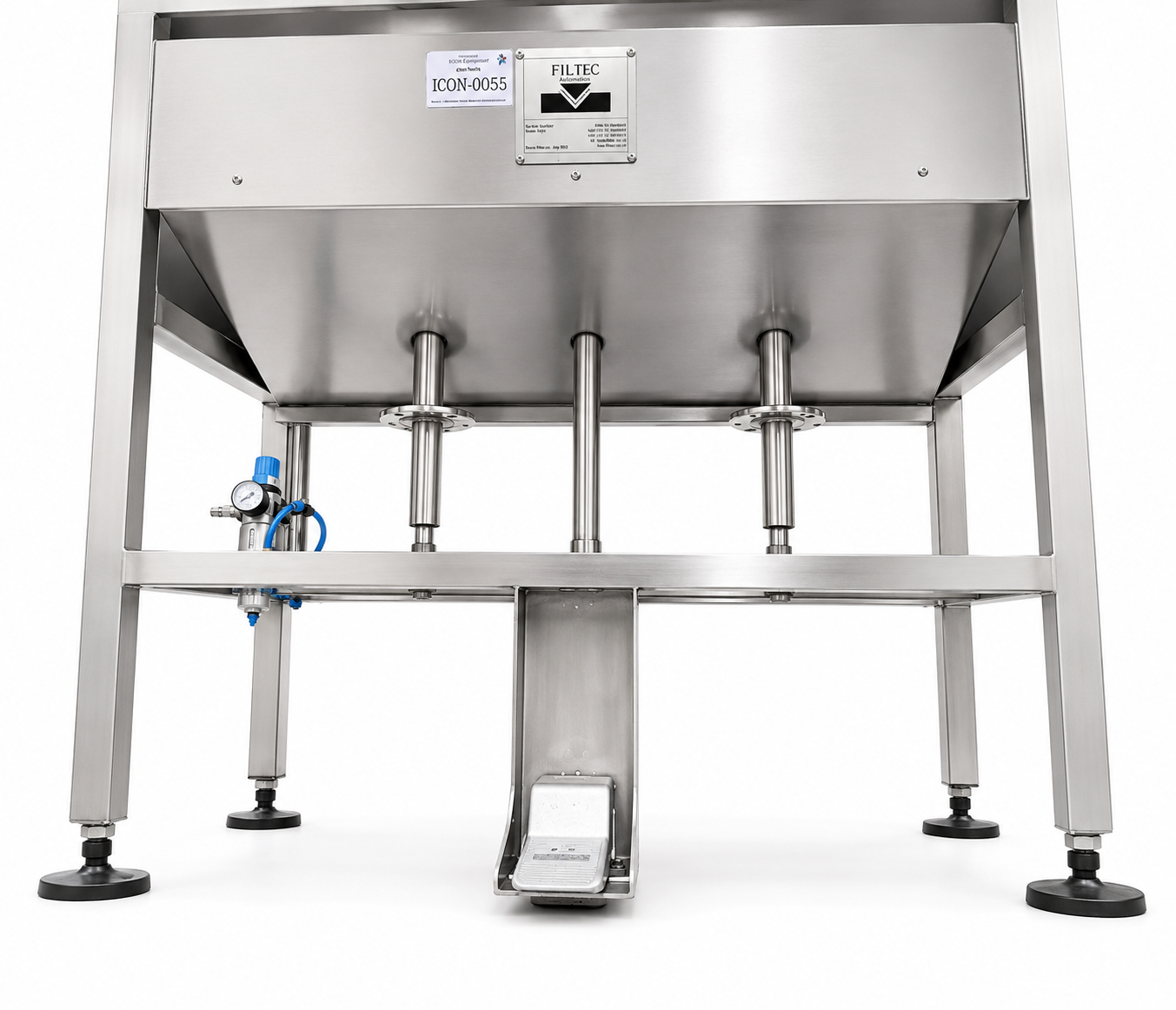

Bottles are placed onto the bottle pad, and pressing the foot pedal lifts them via a pneumatic cylinder, opening the level nozzles to fill by gravity. Once full, the bottle pads lower and the filled bottles are removed and placed onto a conveyor or table — both available as optional add-ons.
Filler Speed
Approximately 600–700 bottles per hour for 2 litre bottles, depending on product viscosity.
Advantages
- Fast, simple operation with minimal moving parts
- Mechanically simple — low maintenance, high reliability
- Accurate, repeatable fill levels via gravity dosing
- Flexible across a wide range of bottle sizes (250ml–5L)
- Quick product change-overs with easy-clean design
- Compact footprint, suited to smaller production spaces
Suited To
Small-to-mid-scale producers of milk, juice, water, cordials, vinegars, and other free-flowing liquid products who need an affordable, reliable entry point into semi-automatic filling — particularly those running multiple bottle sizes or frequent product change-overs without the cost of a fully automatic line.
Why Icon Equipment
Icon Equipment International has supplied filling and packaging machinery to Australian and New Zealand manufacturers since 1975, and can integrate this level filler into a new or existing production line, with conveyor and table options available.
